Offrez-vous pour 99000$ un morceau de choix de l’histoire de  l’America’s Cup avec le premier Stars & Stripes en vente par Gino Morrelli et le cabinet Morrelli & Melvin Yacht.

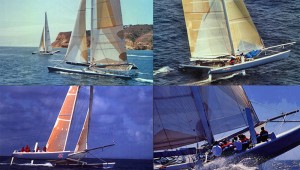

starsstripes2Le détail de l’annonce ci-dessous + Lien vers ‘annonce.

1988 America’s Cup Racing Catamaran

BUILDERS REMARKS:  Designed by Stars and Stripes Design Team on which Gino Morrelli was a member. Built at RD Boatworks in Capistrano Beach, California.

OVERVIEW: Stars & Stripes S1, the sistership to the first America’s Cup racing multifull responsible for successfully defending the 1988 Cup is available for someone looking to sail a piece of America’s Cup history. In 2008 following a record setting attempt for the Port-Huron to Mackinac race the yacht de-masted when the starboard dolphin-striker broke. Currently located in Chicago, Stars & Stripes is ready for a new home and its next adventure. The boat is available as-is and will require investment to get back to racing condition.

[youtube width="600" height="350" video_id="-h7pKHnZs1g"]

HISTORY: In 1987 a surprise challenge for the America’s Cup by New Zealand’s Sir Michael Fay led to the 1988 defense of the America’s Cup by San Diego Yacht Club and Dennis Conner. As the challenge used the original Deed of Gift as its basis, the design requirements only specified that she be a single masted yacht of no more than 90′ at the waterline, the defender chose to respond with a multi-hull design.

Two Stars & Stripes cats were built, S1 and H3, one with a conventional soft sail and the second with a wing mast which was ultimately used in the America’s Cup Defense. To no one’s surprise, Stars & Stripes H-3 dominated the match race series against New Zealand’s KZ1 with San Diego retaining the Cup.

After the 1988 America’s Cup, Stars & Stripes S1, the soft sailed design, was bought by Steve Fossett and used to set speed records in various yacht races. In 1988 Fossett aboard Stars & Stripes set the Chicago to Mackinac multi-hull record of 18 hours, 50 minutes, and 32 seconds, a record which still stands today. For the 100th race to Mackinac in 2008 local Chicago entrepreneur Donald Wilson challenged to break Fossett’s record again using Stars & Stripes. Unfortunately, during the Port Huron, Michigan to Mackinac race the week prior to the Chicago leg, the boat de-masted off Alpena, Michigan and was unable to complete the race.

SUMMARY OF CURRENT CONDITION:

  • Hulls: Require repairs to the forward sprit and support structure, starboard hydraulic side-stay, and other cosmetic scratches that resulted from de-masting and recovery.
  • Daggerboards & Rudders: Working condition
  • Rig: After de-masting the rig was cut away, fell to a depth of 300′, and was recovered the next day. It has had Infrared testing performed, however if the Nomex core core was damaged due to pressure at depth is unknown. There is a high probablility a new rig will be required.
  • Boom: Working condition but needs a new coat of paint.
  • Standing Rigging: Requires new rigging as old carbon rigging was damaged in de-masting
  • Running Rigging & Hardware: Most of the hardware and lines are with the boat, but are now 4 years+ old and will need to be replaced to return to racing condition. 6 winches are in working order.
  • Hydraulics: The hydraulic pumps sustained minimal damage in the de-masting but new fluid lines and a full servicing are needed.
  • Sails: Comes with two jibs, blast reacher, screacher, and storm jib. The mainsail was damaged in 2008.

Full Specifications

Description

  • BOAT NAME: Stars & Stripes S1
  • IS THE NAME TO BE RETAINED: Yes
  • MAKE/MODEL: 1988 America’s Cup Racing Catamaran
  • DESIGNER: Stars and Stripes Design Team
  • BUILDER: RD Boatworks
  • WHERE BUILT: Capistrano Beach, California
  • MODEL YEAR: 1988
  • YEAR BUILT: 1988
  • YEAR/MONTH COMMISSIONED: 1988
  • HULL NO (HIN):  S1 1988
  • REGISTRATION NUMBER: XXX
  • FLAG:  United States of America
  • LOA                         60ft. / 18.29m
  • LWL                         61ft. /  18.59 m
  • BEAM                      30ft. / 9.14m
  • DRAFT                     10ft. / 3.05m (Boards Down)
  • DISPLACEMENT:    7000lbs / 3175.15kg

Construction

  • HULL:     Composite Construction of Carbon fiber, Nomex, and Epoxy resin
  • DECK MATERIAL: Composite Construction of Carbon fiber, Nomex, and Epoxy resin
  • STEERING SYSTEM: Twin P/S thru hull-mounted rudders in structural shafts. Rudders connected between sponsons to twin tillers
  • RUDDER TYPE: High Aspect
  • KEEL TYPE: Daggerboard

Engine

  • NO OF ENGINES: 1
  • MAKE/AGE: Yamaha 30hp
  • MODEL: #30 MLHR 6JB
  • HP: 30hp long shaft, bracket mounted
  • FUEL: Gasoline
  • NO. OF CYLINDERS: V-6
  • COOLING SYSTEM: Water cooled
  • TYPE OF CONTROLS: tiller
  • TYPE OF PROP: 3 blade

Electrics

  • VOLTAGE: 12V DC system
  • NO OF BATTERIES: 2 batteries, one each sponson (no longer with vessel)

Tankage

  • NO OF FUEL TANKS: 1
  • MATERIAL: Plastic (standard red tank)
  • CAPACITY OF FUEL TANKS: 5 gals(U.S.)
  • HOLDING TANKS: n/a, Porta Potti unit(s)

Water system

  • BILGE PUMPS: 2 manual bilge pumps, one each sponson, high volume board mounted foot pump.

Rigging

  • TYPE: Carbon fiber and/or 1×19 as application required
  • SPAR MATERIAL: Vacuum bag carbon fiber & epoxy
  • STANDING RIGGING MATERIAL: « rod rigging » & carbon fiber rigging
  • RUNNING RIGGING MATERIAL: jib halyard, main halyard, 2x jib sheets
  • MAINSAIL REEFING: n/a
  • HEADSAIL ROLLER FURLING: Karver furler
  • NOTES: 2 Karver furlers, one damaged

Sails

  • MAINSAIL: Ullman/2006 damaged
  • MAINSAIL TRACK SYSTEM: Harken Head Car/ Track
  • JIB: Full jib 2007 / Heavy jib 2008 / Ullman
  • BLAST REACHER: late 2007 / Ullman
  • STORM JIB: 2007 / Ullman
  • OTHER SAILS: Screacher (new 2007)/ Ullman

Winches

  • GENOA WINCHES: Two(2) Barient 32
  • HALYARD WINCHES: Two(2) Barient 36
  • MAINSHEET / TRAVELLER WINCHES: Two(2) Barient 36

Accommodations

  • NO. HEADS: Porta Potti unit(s)

Ground tackle

  • PRIMARY ANCHOR: Two(2) Fortresses (FX-23) / nylon anchor line 5/8″ 150ft.

Navigation equipment

  • NAVIGATION LIGHTS: Running / Navigation Lights
  • DEPTHSOUNDER: Fathometer: Micronet (2) each hull
  • SPEED: Micronet (2) each hull

General equipment

  • FIRE FIGHTING EQUIPMENT: two(2) BC fire extinguishers
  • BILGE PUMPS: two(2) manual bilge pumps
  • OUTBOARD: Yamaha 30hp, long shaft

DISCLAIMER
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
